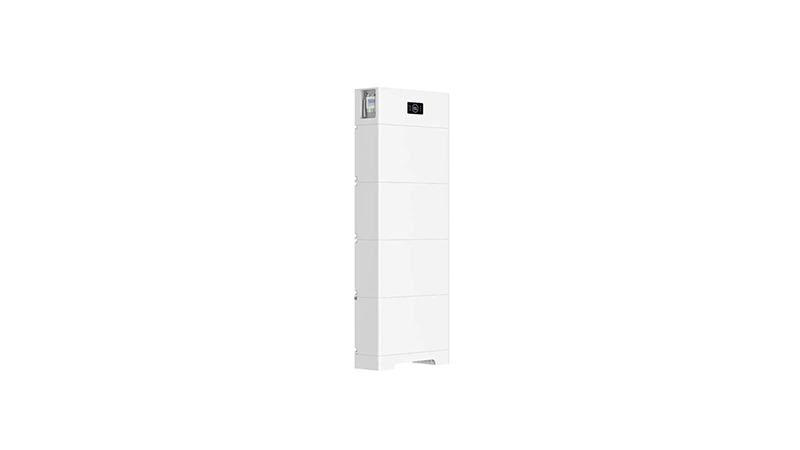

Stacked Home Energy Storage System

Stacked Home Energy Storage System
Stacked Home Energy Storage System




It is suitable for household energy storage power supply for small-capacity access network equipment, household electrical equipment, commercial power backup equipment, and household backup power equipment.


It had the function of central controlbattery maintenance and management to meet the requirements of no one on duty: it could be monitored in real time through the mobile APP.

  product name Home energy storage system (stacked)
serial number parameter item Specification Description
3 battery model HJD-HSSH-SM01 HJD-HSSH-SM02 HJD-HSSH-SM03
4 Battery Type Lithium iron phosphate battery
5 battery capacity 200Ah 300Ah 400Ah
6 Rated voltage 96Vdc 144Vdc 192Vdc
7 voltage range 40Vdc~54Vdc 120Vdc~162Vdc 160Vdc~216Vdc
8 Parallel quantity 2 3 4
9 Rated charge and discharge current 50A 50A 50A
10 Maximum charge and discharge current 100A 100A 100A
11 cycle life ≥2000 times@80%DOD@25℃
12 way of communication RS485/CAN
13 display screen LCD/LED display (optional)
14 Module size (W*D*H)/(for reference) 600*500*550mm 600*500*750mm 600*500*950mm
15 Module weight/(for reference) 75kg 95kg 115kg
16 degree of protection IP55
17 Relative humidity 10%~90%
18 Operating temperature 0℃~50℃, -10℃ ~50℃
19 installation method stacked
20 Fastener Standard Fixed/Mobile Base
21 Product Certification/Certificate UN38.3/CE/UL1973
