Energy storage system

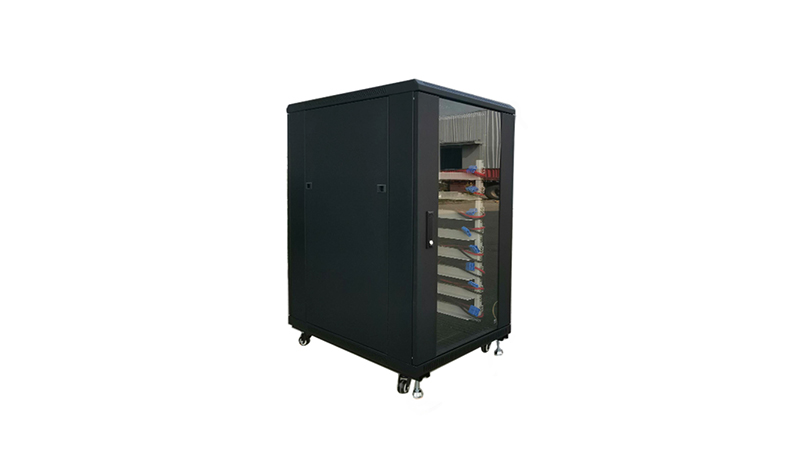

Battery cabinet

Standard 19-inch installation cabinet
Battery cabinet



Product Description

1. Cabinet size: 18U*600*800mm;

2. Structure: Top and bottom frame structure, front and rear door with door lock,left and right side panal removable;

3. Doors:front single-open tempered glass door, rear double-open mesh door;

4. Material: High quality cold rolled sheet;

5. Sheet thickness: Standard 19-inch installation cabinet, frame 2.0mm, vertical column 2.0mm, shelves (or L-shape support)1.5mm, side plate 1.0mm, other plate 1.2mm, spray color RAL9004 black ;

6. 8 pairs L-shape support;SPRAYING COLOUR: SURF MIST SATIN

7. 4pcs casters and 4pcs ground foot;

8. 2pcs Busbar(3*30*850mm),1pcs  Perspex panel (3*230*850mm)to cover the busbars;

9. 8pcs Anderson SB50 Blue connector,10 meters 16mm2 single core red cable,10 meters 16mm2 single core black cable,16pcs copper terminals;

10. IP degree: IP20

11.Package: Export standard carton box + plywood pallet.
