115kwh Battery Storage Cabinet - Premium Energy Storage Solution

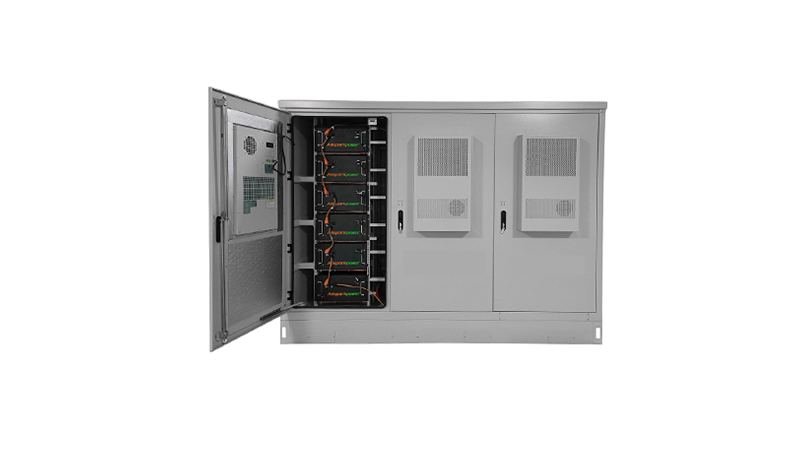

The HJ-ESS-115A 115kwh Battery Storage Cabinet is a high-performance commercial and industrial-side air-cooled energy storage system characterized by a powerful 50 kW output with an energy storage capacity of 115 kWh. The advanced energy storage utilizes a highly efficient lithium iron phosphate battery technology backed by an intelligent power management system to render dependable energy storage and optimized power delivery for commercial applications.
The 115kwh Battery Storage Cabinet is built with a rugged cabinet design that resists harsh weather for outdoor installations. The system embodies robust safety features for reliable operation even in demanding use conditions: over-voltage, over-current protection, short-circuit protection, etc.
Key Features of Our 115kwh Battery Storage Cabinet
- High-Performance Energy Storage: 50 kW power output with energy storage capacity of 115 kWh
- Advanced Monitoring System: Real-time analysis of parameters for performance and efficiency
- Durable Outdoor Design: IP55-rated cabinet designed to withstand extreme weather conditions
- Integrated Safety Features: Overall protection, including over-voltage, over-current, and short-circuit protection
- Lithium Iron Phosphate Technology: Highest cycle life and thermal stability
Applications of the 115kwh Battery Storage Cabinet
The HJ-ESS-115A 115kwh Battery Storage Cabinet is ideal for:
- Critical infrastructure backup power for industrial facilities
- Energy management for commercial buildings
- Data centers and communication base stations
- Integration with solar PV renewable energy optimization
- Peak shaving and load shifting applications
- Grid stabilization and frequency regulation
AC/DC Parameters
| Product model: HJ-ESS-115A (50KW/115KWh) | |||
|---|---|---|---|
| DC parameters | AC parameters | ||
| Battery Type | Lithium Iron Phosphate | AC side rated power | 50KW |
| Cell capacity | 3.2V/150Ah | Maximum power on AC side | 55KW |
| System battery configuration | 1P240S | Cable total harmonic distortion rate | <3% of rated power |
| Battery rated capacity | 115kWh | AC side rated voltage | 380VAC |
| Battery voltage range | DC636-876V | Communication access method | 3P+N+PE |
| Charge and discharge rate | 0.5C | Rated grid frequency | 50/60Hz |
| Discharge depth | 80% | Power factor range | 0.98 |
| Battery cooling method | air cooling | Off-grid operation | support |
System Parameters
| size | 1200*1400*2400mm(reference) | Temperature control method | Liquid cooling unit |
|---|---|---|---|
| Protection level | IP55 | fire protection plan | Aerosol, perfluorohexanone |
| System communication protocol | Standard: Modbus | Communication Interface | RS485, RJ45 |
